CRYOGENIC

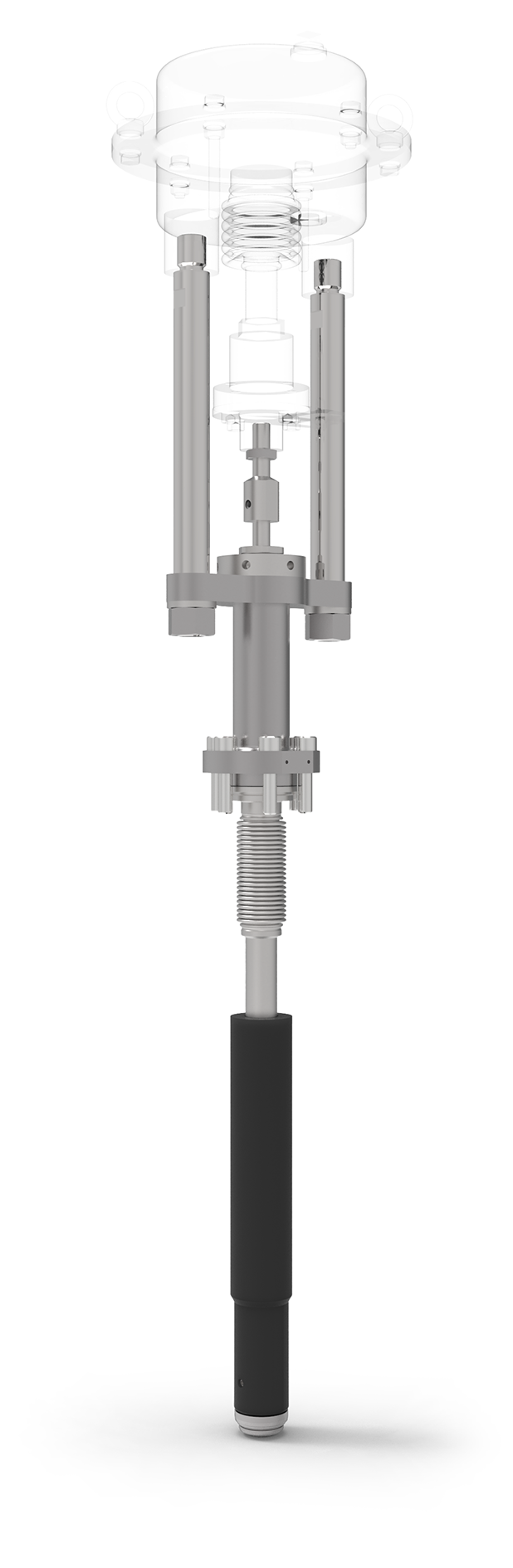

Type 11C01 - Globe Valve FullX
|
Top-Entry Cryogenic-Globe Valves - Bellow in top position, Fire Safe Design "cleaned and degreased for oxygen service" Part No. 11C01.X.E0030X - actuator (diaphragm) suitable for:
|
 |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Type 11C01 | Technical data | |||||||
| Nominal size | DN | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Dimension code | .X. | 001X | 001X | 002X | 002X | 3240 | 3240 | 0050 |

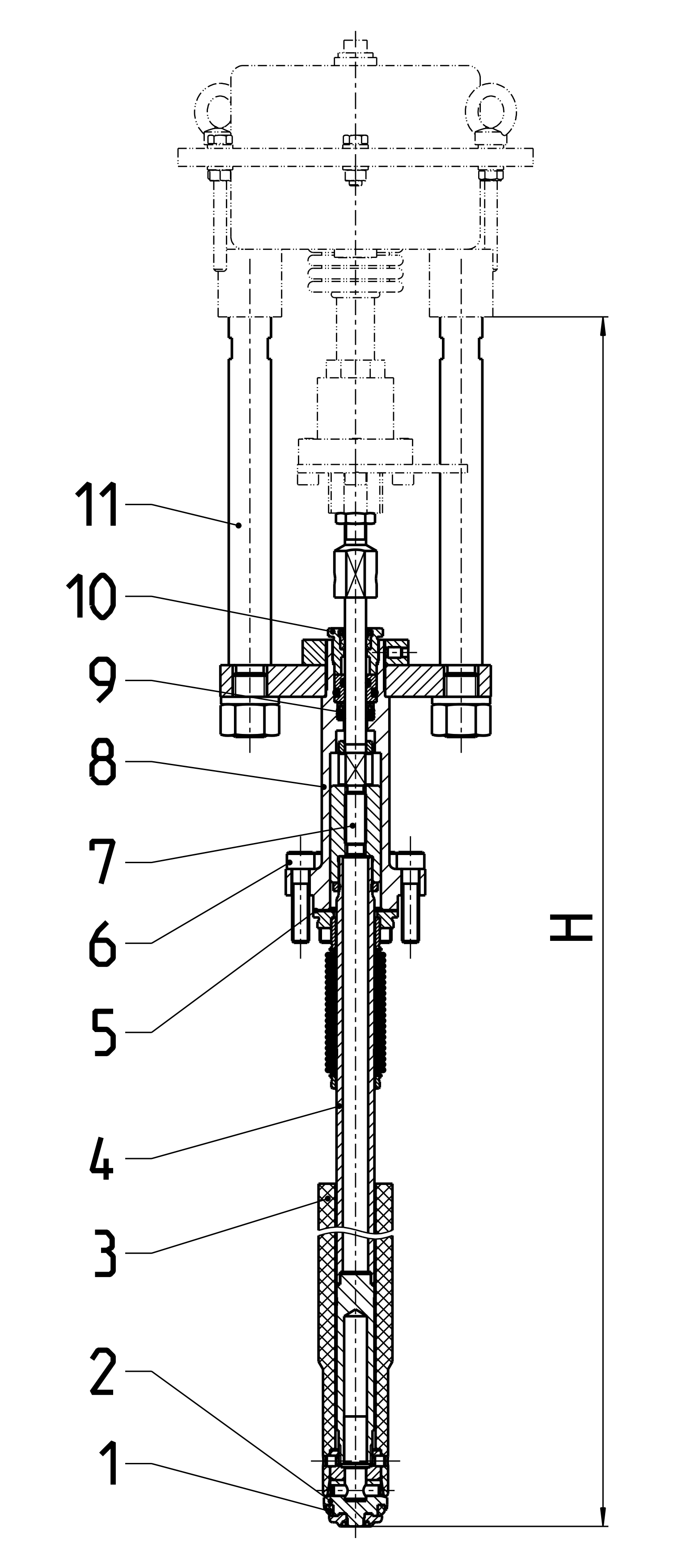

| Height | H | 661 | 661 | 665 | 665 | 803 | 803 | 923 |
| Handwheel-Ø | B | 100 | 100 | 100 | 100 | 125 | 125 | 125 |
| Weight | ca. kg | 3.6 | 3.6 | 3.7 | 3.7 | 9.1 | 9.1 | 11.7 |
| Dimensions in mm. |
