CRYOGENIC
Type 15C02 - Ball Valve full bore
Cryogenic Ball Valve

Bidirectional ball valve (Optional: unidirectional with vent hole for liquid medium) Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312 Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312 Female thread type NPT acc. to ANSI 1.20.1 Female thread type G (BSPP) acc. to ISO 228/1 Antistatic design acc. ISO 7121 Marking acc. to EN 1626 Top flange to EN ISO 5211 "cleaned and degreased for oxygen service"






Applications:
Approved for air gases, vapours and cryogenic liquefied gases (only for ball valves with a vent hole in the ball) and mixtures thereof, including natural gas and ammonia.
Working temperature: -60°C / -76°F (213K) up to +190°C / +374°F (463K)


Type 15C02 - Ball Valve full bore

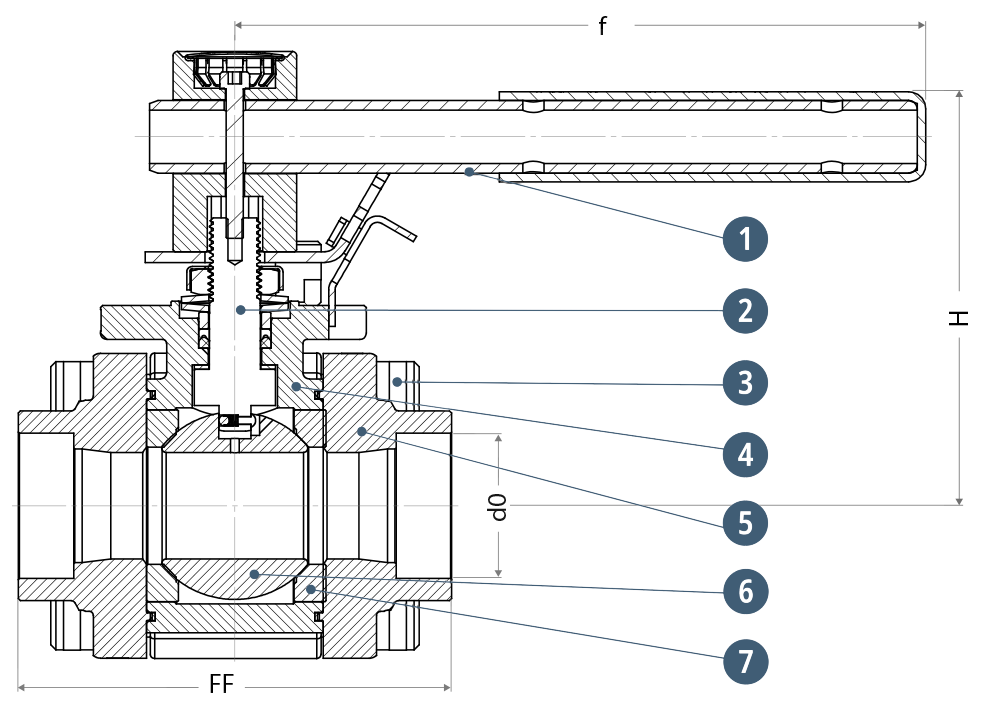

Materials

DIN EN

ASTM
1 Lever 1.4301 A 312 TP304
2 Stem 1.4401 A 479 316
3 Screws A2-70
4 Body 1.4409 A 351 CF3M
5 Side connection 1.4409 A 351 CF3M
6 Ball 1.4404 A 479 316L
7 Ball seal PTFE (Inoflon M295)

Type 15C02 - Ball Valve full bore


Technical data - Standard design
Nominal size [DN] Height (H) [mm]Orifice (D0) [mm]Weight [kg]Kvs-value [m³/h]Cv-value [gal/min]Length (f) [mm]ISO 5211
10848.01.25.76.6130F05
158414.51.210.712.4130F05
2010119.52.224.728.6160F05
2510625.02.732.137.1160F05
3212032.04.577.990.1240F07
4012438.05.4122.3141.4240F07
5015150.011.6124.1143.7465F10
6519764.521.8188.6218.4462.5F10
8023380.035.7279.8323.7600F10



Connection types

Butt weld connection acc. to
· ISO 1127


DN
Nominal Pressure
[PN]
Face-to-face dim. (FF)
[mm]
Outside pipe-Ø ISO (RA)
[mm]
Wall thickness pipe ISO (a)
[mm]
Part No.

10
100
65
13.5
2.0
15C02.A001.000401
15
100
70
21.3
2.0
15C02.A001.000407
20
100
85
26.9
2.0
15C02.A001.000413
25
70
102
33.7
2.6
15C02.A001.000419
32
70
115
42.4
2.6
15C02.A001.000425
40
70
125
48.3
3.2
15C02.A001.000431
50
50
162
60.3
3.2
15C02.A001.000437
65
30
182.5
76.1
2.9
15C02.A001.000243
80
20
218
88.9
3.2
15C02.A001.000247

Butt weld connection acc. to
· ASTM A312


DN
Nominal Pressure
[PN]
Face-to-face dim. (FF)
[mm]
Outside pipe-Ø ASTM (RA)
[mm]
Wall thickness pipe ASTM (a)
[mm]
Part No.

10
100
65
13.72
1.65
15C02.A001.000404
10
100
65
13.72
2.31
15C02.A001.000405
15
100
70
21.35
2.11
15C02.A001.000410
15
100
70
21.35
2.77
15C02.A001.000411
20
100
85
26.70
2.11
15C02.A001.000416
20
100
85
26.70
2.87
15C02.A001.000417
25
70
102
33.40
2.77
15C02.A001.000422
25
70
102
33.40
3.38
15C02.A001.000423
32
70
115
42.20
2.77
15C02.A001.000428
32
70
115
42.20
3.56
15C02.A001.000429
40
70
125
48.30
2.77
15C02.A001.000434
40
70
125
48.30
3.68
15C02.A001.000435
50
50
162
60.33
2.77
15C02.A001.000440
50
50
162
60.33
3.91
15C02.A001.000441
65
30
182.5
73.10
3.10
15C02.A001.000244
65
30
182.5
73.10
5.20
15C02.A001.000245
80
20
218
88.90
3.10
15C02.A001.000248
80
20
218
88.90
5.45
15C02.A001.000249



Socket weld connection acc. to
· ISO 1127
· ASTM A312


DN
Nominal Pressure
[PN]
Face-to-face dim. (FF)
[mm]
Socket depth (b)
[mm]
Socket diameter (RA)
[mm]
Part No.

10
100
65
6.0
14.1
15C02.A001.000400
15
100
70
10.0
21.5
15C02.A001.000406
20
100
85
13.0
27.5
15C02.A001.000412
25
70
102
13.0
34.1
15C02.A001.000418
32
70
115
13.0
38.2
15C02.A001.000424
40
70
125
13.0
48.7
15C02.A001.000430
50
50
162
16.0
61.1
15C02.A001.000436
65
10
182.5
16.0
77.0
15C02.A001.000242
80
10
218
16.0
90.0
15C02.A001.000246

Female thread type
· NPT acc. to ANSI 1.20.1
· G (BSPP) acc. to ISO 228/1


DN
Nominal Pressure
[PN]
Face-to-face dim. (FF)
[mm]
Thread size (GW)
[mm]
Part No.

10
100
65
G 3/8
15C02.A001.000402
10
100
65
NPT 3/8
15C02.A001.000403
15
100
70
G 1/2
15C02.A001.000408
15
100
70
NPT 1/2
15C02.A001.000409
20
100
85
G 3/4
15C02.A001.000414
20
100
85
NPT 3/4
15C02.A001.000415
25
70
102
G 1
15C02.A001.000420
25
70
102
NPT 1
15C02.A001.000421
32
70
115
G 1 1/4
15C02.A001.000426
32
70
115
NPT 1 1/4
15C02.A001.000427
40
70
125
G 1 1/2
15C02.A001.000432
40
70
125
NPT 1 1/2
15C02.A001.000433
50
50
162
G 2
15C02.A001.000438
50
50
162
NPT 2
15C02.A001.000439
