CRYOGENIC
Type 28321 - Topwork
|
for Cryogenic-Globe and Globe/Check Valves Stainless steel topwork "live loaded" gland packing "cleaned and degreased for oxygen service" Part No. 28321.X.0010 (H=270mm) Part No. 28321.X.0020 (H=370mm) Part No. 28321.X.5010 (H=270mm) with check function Part No. 28321.X.5020 (H=370mm) with check function suitable for:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Type 28311 | Technical data | ||
| Nominal size | DN | 25 | 40 |
| Dimension code | .X. | 0250 | 0400 |

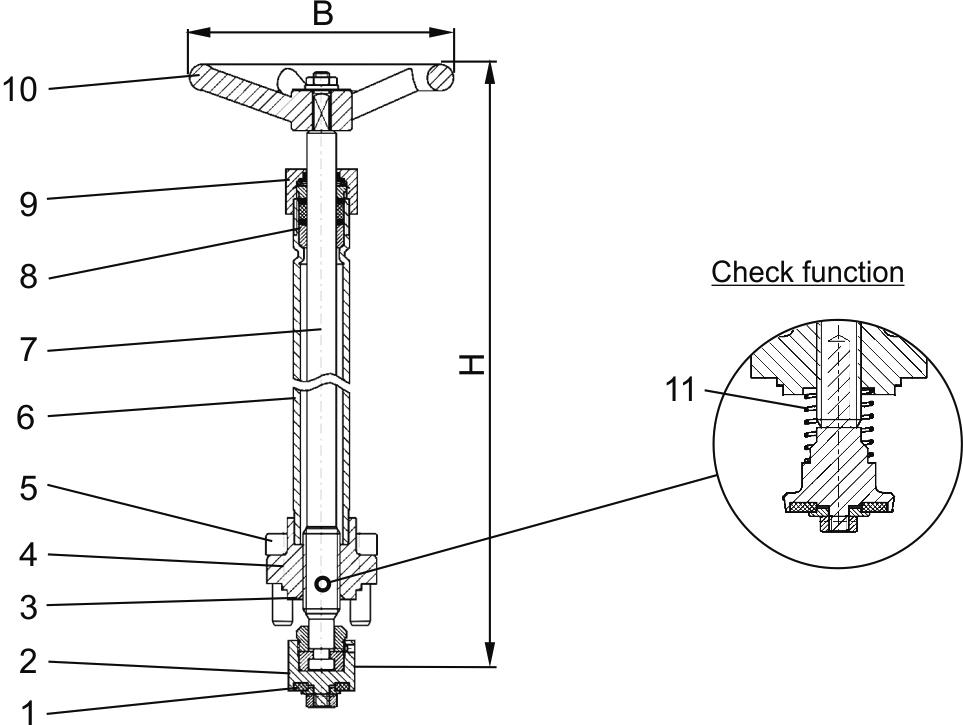

| Height | H | 270 mm or 370 mm | |
| Number of bolts | 4 | 4 | |
| Handwheel-Ø | B | 100 | 125 |
| Weight | ca. kg | 1.4 | 2.4 |
| Dimensions in mm. |
