CRYOGENIC
Type 30514 - Sealing spare part kit
|

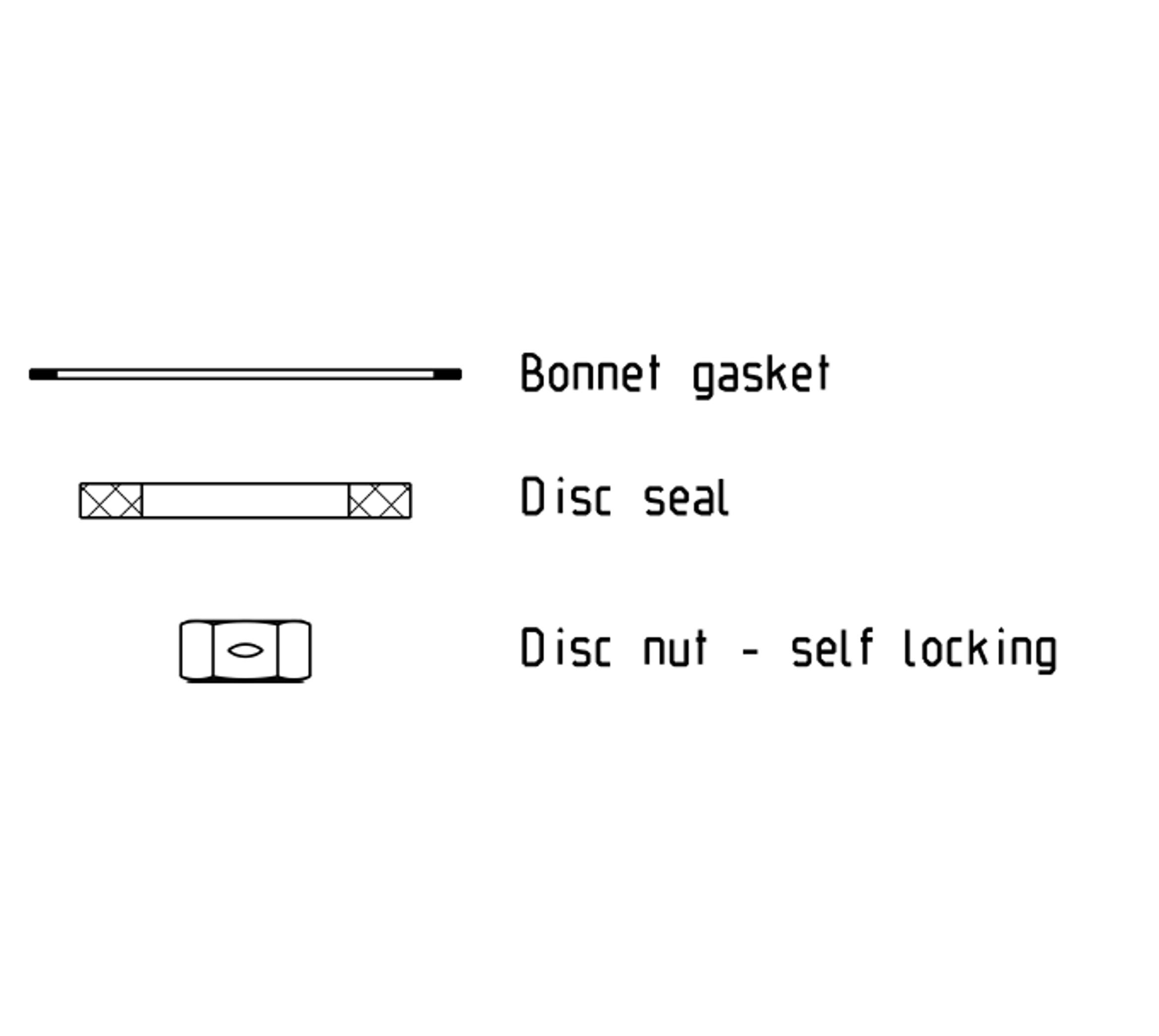

for Cryogenic Globe Valves and Check Valves "cleaned and degreased for oxygen service" consisting of: - 2x Bonnet gasket PTFE - 1x Disc seal PTFE 25% carbon (DN10 - DN50) / PTFE (DN65 - DN150) - 1x Disc nut 1.4301 (DN10 - DN50) / 1.4571 (DN65 - DN150) Part No. 30514.X.0000 suitable for:
|
|
|||||||||
|
|
|
| Type 30514 | Technical data | |||||||||||
| Nominal size | DN | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 |
| Dimension code | .X. | 0100 | 0150 | 0200 | 0250 | 0320 | 0400 | 0500 | 0650 | 0800 | 1000 | 1500 |
| Weight | ca. kg | 0.02 | 0.02 | 0.03 | 0.04 | 0.06 | 0.07 | 0.11 | 0.16 | 0.22 | 0.30 | 0.65 |
| Dimensions in mm. |
