CRYOGENIC
Type E4182-3 - Spare part kit
|
Bellow disc for Cryogenic-Pressure Regulator, stainless steel, PN50 "cleaned and degreased for oxygen service" suitable for:
|
|
|||||||
|
|
|
|
consisting of:

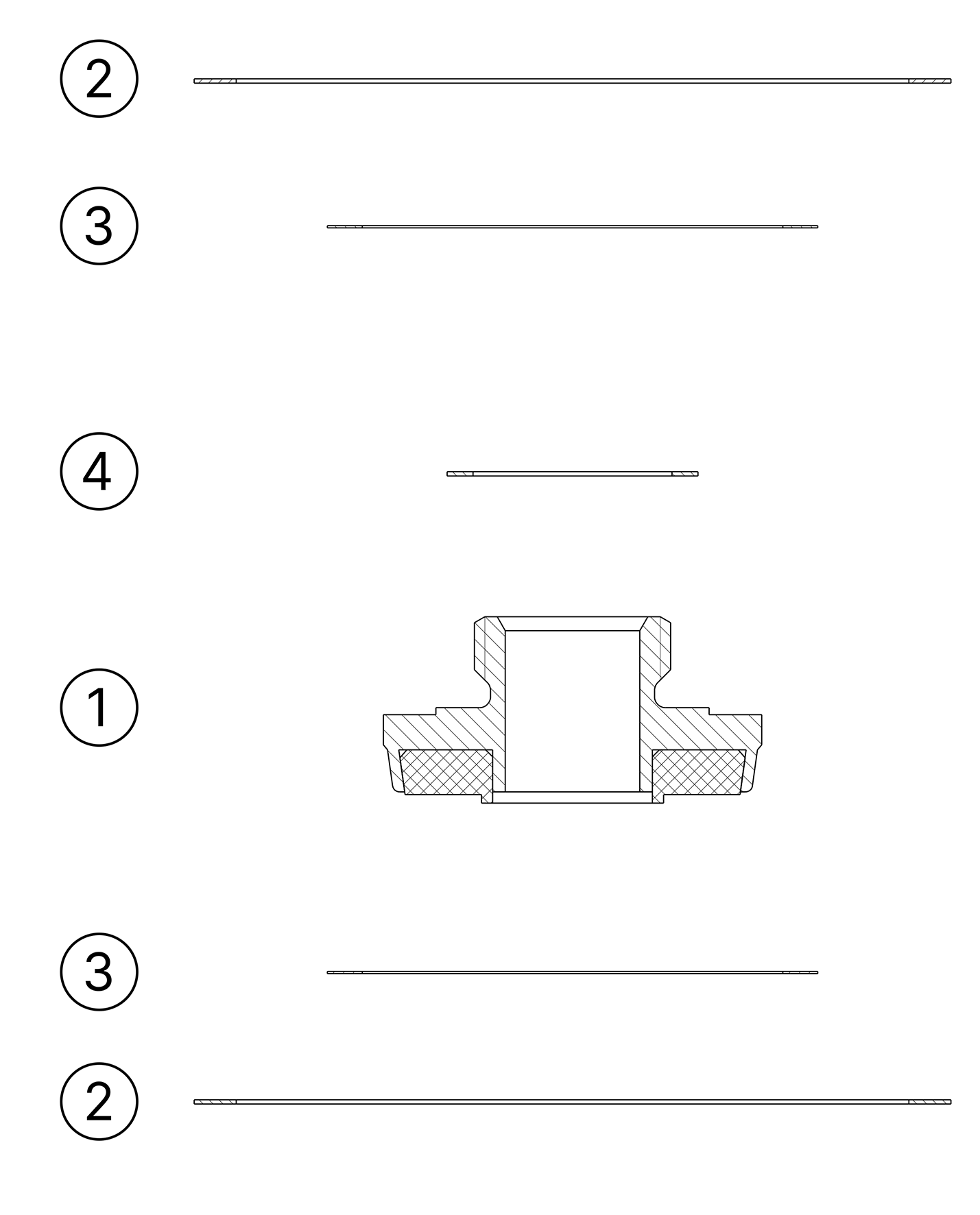

• 1x Bellow disc CW614N • 2x Gasket 54x48x0.3 mm Hostaflon_TFM1600/1700 • 2x Gasket 30x35x0.15 mm PTFE • 1x Gasket 14x18x0.3 mm PTFE Part No. E4182.3000.0030 |
|
|||||||||||||||||||||||
|
|
|||||||||||||||||||||||
| Type E4182.3000.0030 | Technical data | |
| Nominal size | DN | 20 |
| Weight | ca. kg | 0.06 |
