CRYOGENIC

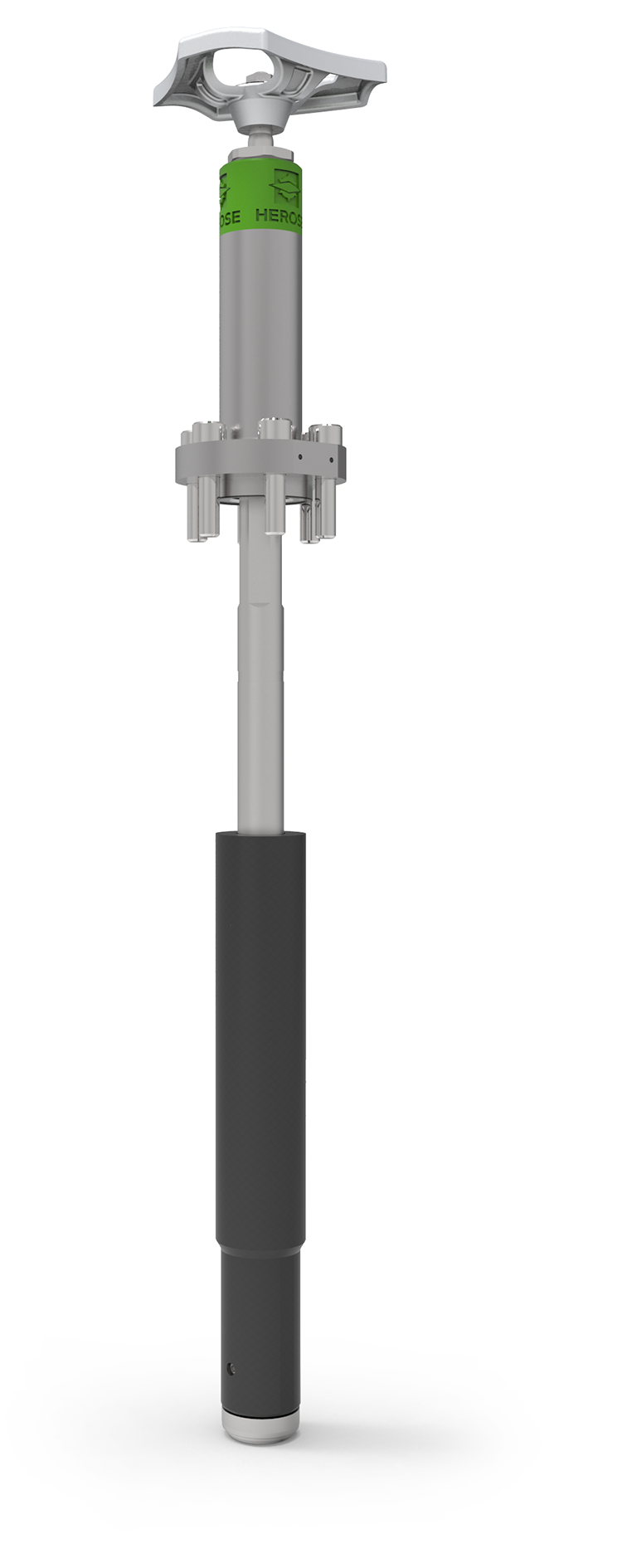

Type 11C01 - Globe Valve FullX
Top-Entry Cryogenic-Globe Valves - Bellow in top position

"cleaned and degreased for oxygen service"

Part No. 11C01.X.E00301 - manual
Part No. 11C01.X.E00302 - actuator (diaphragm)
Part No. 11C01.X.E00303 - bare shaft (connection to Fisher actuator)


suitable for:


TypeNominal size
11C01DN10 - DN50



Type 11C01 - Globe Valve FullX

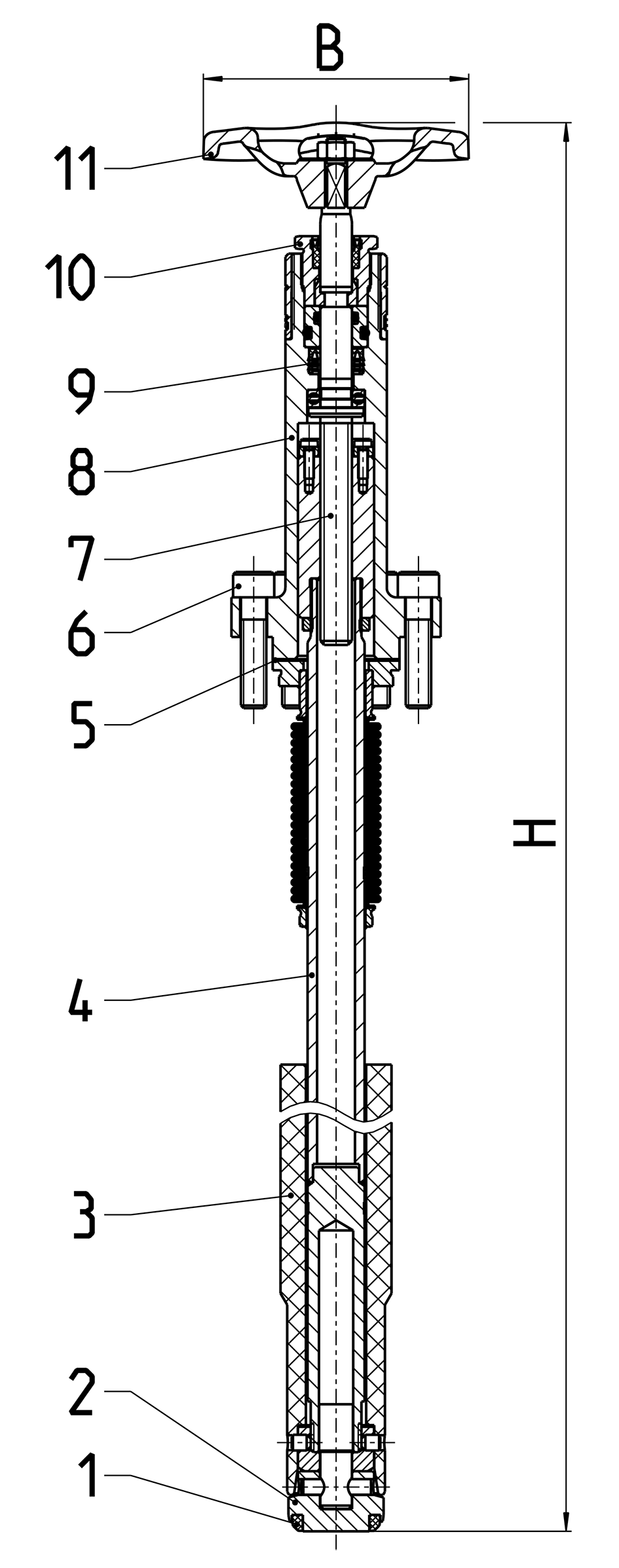

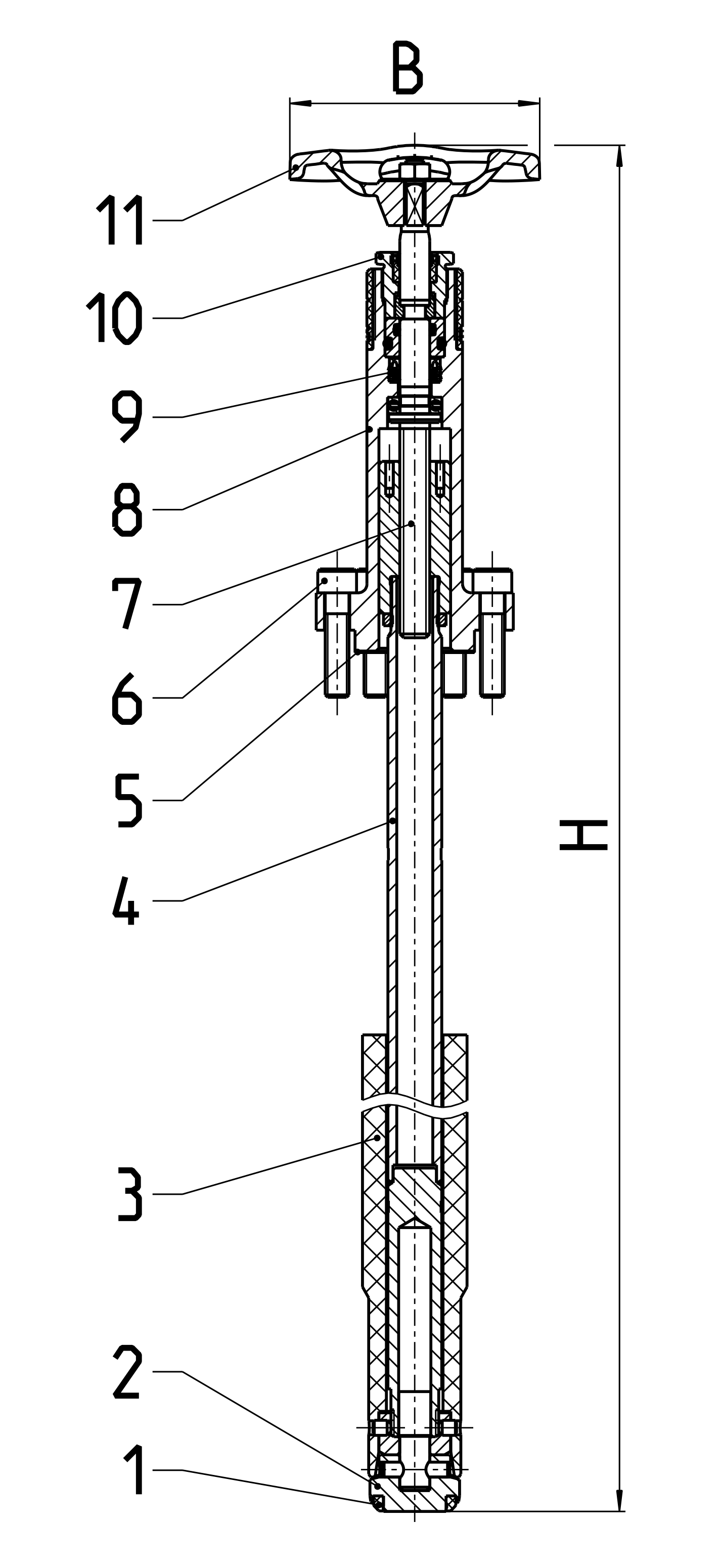

Materials

DIN EN

ASTM
1 Valve seal PTFE / Carbon filled (25%)
2 Disc 1.4301 A 276 Grade 304
3 Bonnet gasket PTFE
4 Headpiece 1.4301 / 1.4308 A 276 Grade 304 / A 351 CF8
5 Bolts 1.4301/A2 A 194 B8
6 Elongation tube 1.4541 A 213 TP 321
7 Stem 1.4301 A 276 Grade 304
8 Gland packing Graphite / PTFE
9 Gland nut 1.4305 A 276 Grade 303
10 Handwheel Aluminium alloy
11 Spring 1.4310 A 313 Grade 301
12 Bush CW452K B 159 UNS C51900



Type 11C01 - Globe Valve FullX
Type 11C01Technical data
Nominal size DN10152025324050
Dimension code.X.001X001X002X002X324032400050
HeightHVariant-dependent
Handwheel-ØB100100100100125125125
Weightca. kgVariant-dependent
Dimensions in mm.
