11C01 - Globe Valve FullX with actuator

CRYOGENIC

Type 11C01 - Globe Valve FullX with actuator

Top-Entry pneumatic actuated Cryogenic-Globe Valves, forged steel body, up to PN63

A001 series

Stainless steel body and topwork,
actuator - spring to close, air to open
"live loaded" gland packing
"cleaned and degreased for oxygen service"
- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312
Available accessories/options:

- Solenoid valve - Limit switch - Electropneumatic positioner etc.
- Actuator - cleaned and degreased for oxygen service
- Bellow, top position
- Bellow, bottom position
- Bellow monitoring
- Check function
- Control function
- Throttle function
- Purge port

- On request only:
- Further connection types

Applications:
Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)

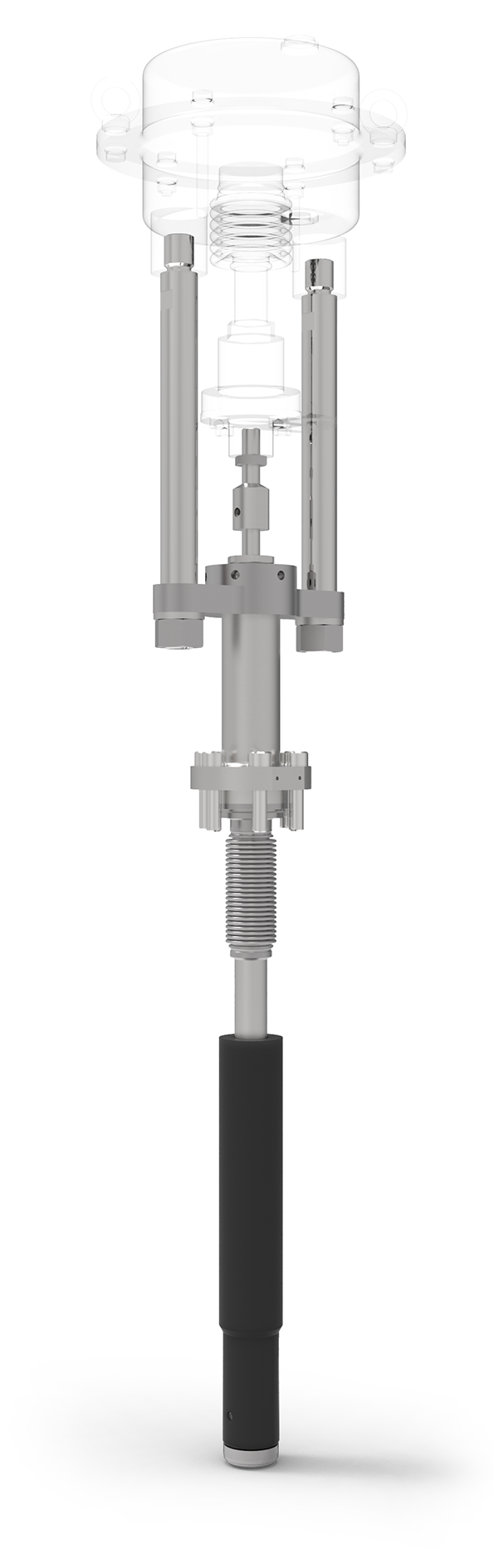

Type 11C01 - Globe Valve FullX with actuator

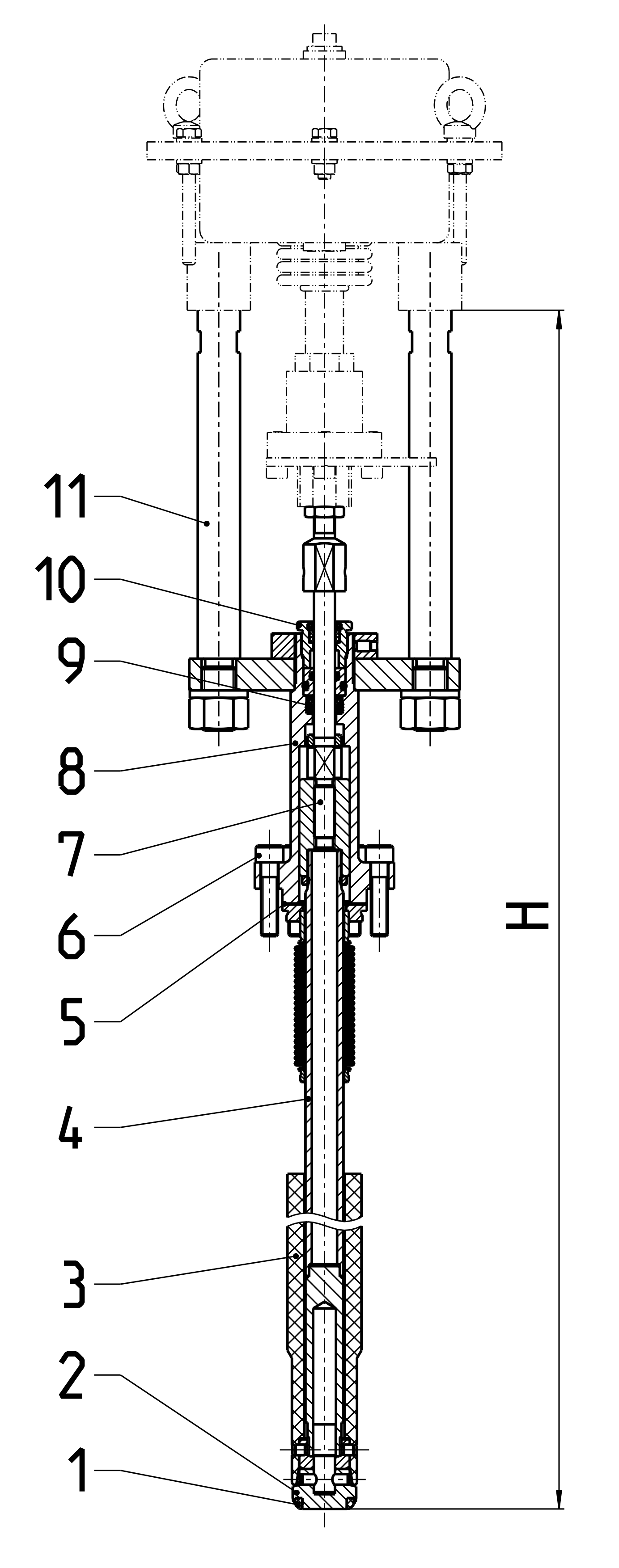

Materials		DIN EN	ASTM
1	Body	1.4571	A 313 Grade 316TI
2	Valve seal	PCTFE
3	Disc	1.4571	A 313 Grade 316TI
4	Tube	1.4571	A 313 Grade 316TI
5	Hollow stem	1.4571	A 313 Grade 316TI
6	Flange	1.4404	A 276 Grade 316L
7	Bonnet gasket	PTFE / Elektrocarbon (25%)
8	Bushing	CW452K	B 159 UNS C51900
9	Bolt	A4-70	A 194 B8M
10	Head peace	1.4404	A 276 Grade 316L
11	Sliding bushing	CW452K	B 159 UNS C51900
12	Gasket	PTFE / Elektrocarbon (25%)
13	Gland bolt	1.4404	A 276 Grade 316L
14	Wiper	PEEK	B 159 UNS C51900
15	Stem	1.4404	A 276 Grade 316L
16	O-ring	FPM (VITON)
17	Bracket	1.4404	A 276 Grade 316L

Nominal size	DN	10	15	20	25	32	40	50
Collar-Ø	G	68.0	68.0	68.0	68.0	84.4	84.4	100
Length	M	5	5	5	5	5	5	5
Actuator-Ø	B	dependent on actuator
Outside pipe-Ø ISO	Ra	17.2	21.3	26.9	33.7	42.4	48.3	60.3
Wall thickness pipe ISO	a	1.8	2.0	2.3	2.6	2.6	2.6	2.9
Pipe-Ø ASTM A312		S10

Dimensions in mm.

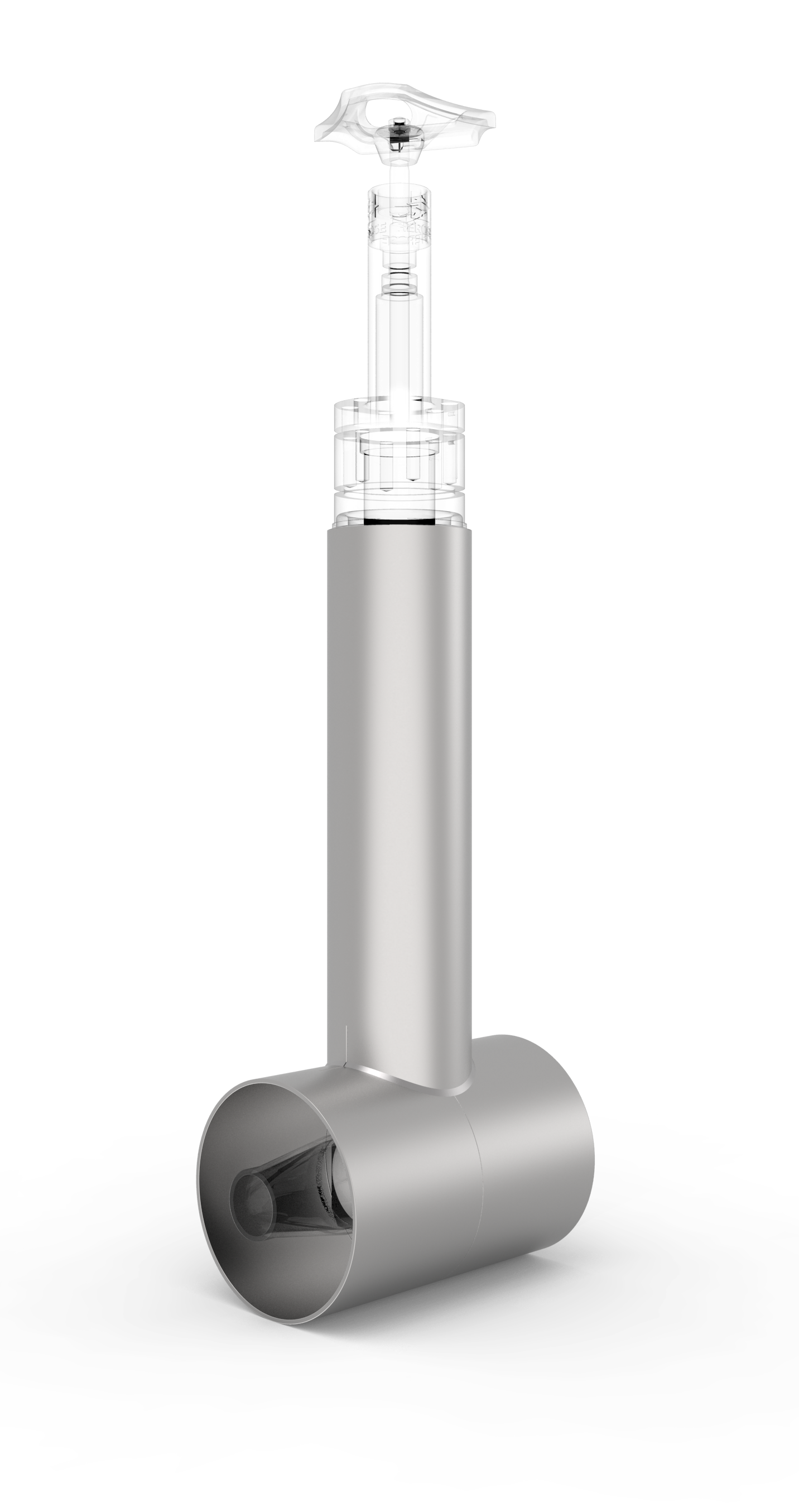

Body types

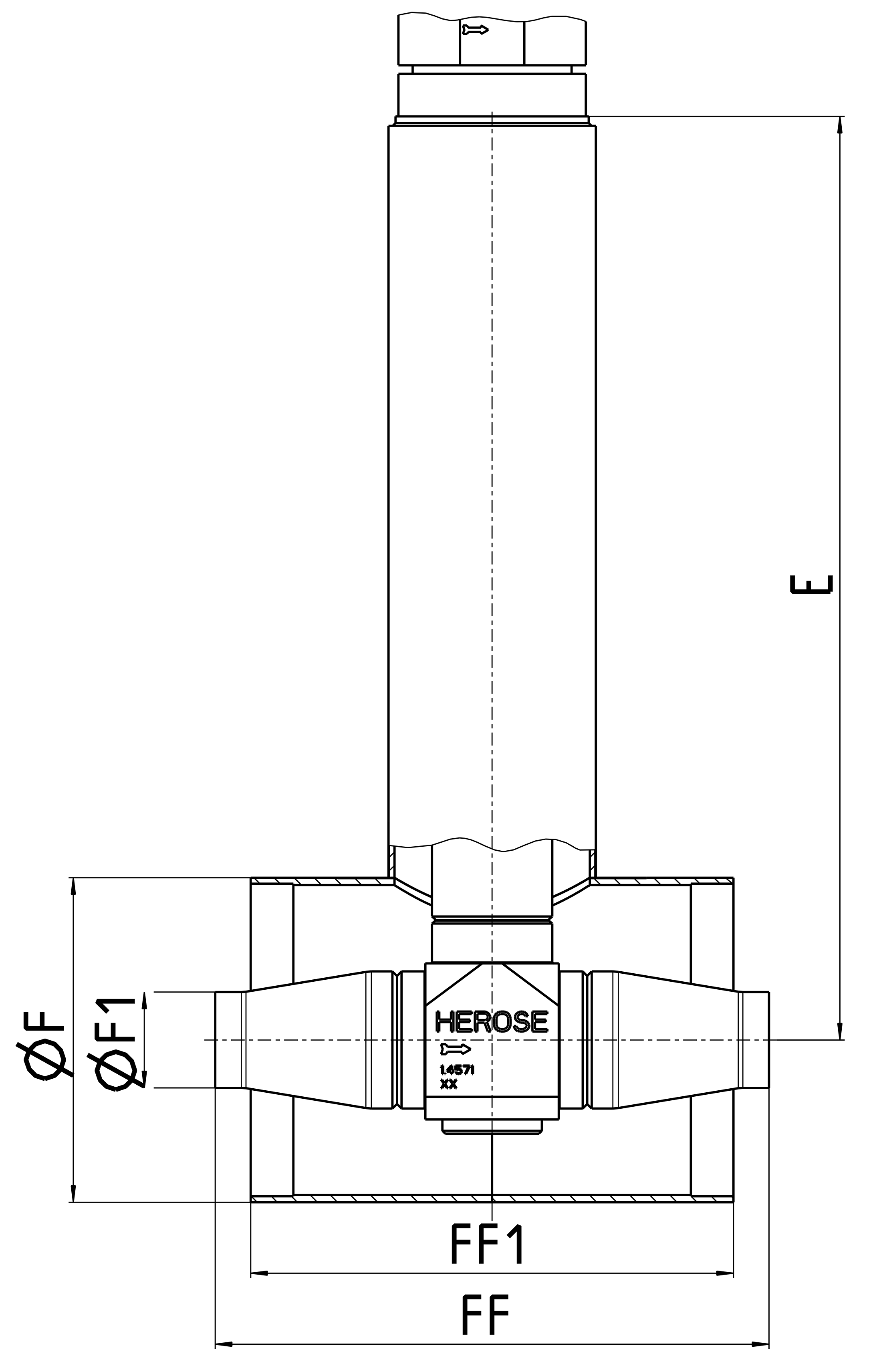

Straight body

Nominal size	DN	10	15	20	25	32	40	50
Face-to-face dim.	FF	150	150	195	195	235	235	280
Height	H	567	567	567	567	dependent on actuator
Length	E	325	325	325	325	445	445	525
Kvs-value	m³/h	3.4	4.4	9.8	12.3	25.8	28.3	44.0
Kvs-value*	m³/h	3.4	4.4	9.5	12.0	25.8	28.3	44.0
Cv-value	gal/min	4.0	5.1	11.4	14.3	30.0	32.9	51.2
Cv-value*	gal/min	4.0	5.1	11.0	14.0	30.0	32.9	51.2
Weight**	ca. kg	4.95	4.97	5.72	5.77	11.50	11.53	15.33

* with bellow, ** without actuator

Body angle type

Nominal size	DN	10	15	20	25	32	40	50
Face-to-face dim.	FF	80	80	100	100	120	120	140
Height	H	567	567	567	567	dependent on actuator
Length	E	325	325	325	325	445	445	525
Length	L	80	80	100	100	120	120	140
Kvs-value	m³/h	4.7	5.7	19.8	22.3	41.1	43.6	80.0
Kvs-value*	m³/h	4.7	5.7	16.5	19.0	33.3	35.8	63.0
Cv-value	gal/min	5.5	6.6	23.0	25.9	47.8	50.7	93.0
Cv-value*	gal/min	5.5	6.6	19.2	22.1	38.7	41.6	73.3
Weight**	ca. kg	4.91	4.93	5.64	5.68	11.11	11.14	14.53

* with bellow, ** without actuator

Body Y type

Nominal size	DN	10	15	20	25	32	40	50
Face-to-face dim.	FF	185	185	250	250	285	285	340
Height	H	521	521	524	524	dependent on actuator
Length	E	365	365	370	370	505	505	600
Kvs-value	m³/h	4.2	5.2	11.9	14.4	34.4	36.9	69.8
Kvs-value*	m³/h	4.2	5.2	7.7	10.2	28.6	31.1	35.0
Cv-value	gal/min	4.9	6.0	13.8	16.7	40.0	42.9	81.2
Cv-value*	gal/min	4.9	6.0	9.0	11.9	33.3	36.2	40.7
Weight**	ca. kg	5.24	5.26	6.37	6.42	12.53	12.56	17.50

* with bellow, ** without actuator

Top-Entry pneumatic actuated Cryogenic-Globe Valves, casted body, up to PN50

A002 series

Stainless steel body and topwork,
actuator - spring to close, air to open
"live loaded" gland packing
"cleaned and degreased for oxygen service"
- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312
Available accessories/options:

Materials		DIN EN	ASTM
1	Body	1.4409	A 351 CF3M
2	Valve seal	PCTFE
3	Disc	1.4571	A 313 Grade 316TI
4	Tube	1.4571	A 313 Grade 316TI
5	Hollow stem	1.4571	A 313 Grade 316TI
6	Flange	1.4404	A 276 Grade 316L
7	Bonnet gasket	PTFE / Elektrocarbon (25%)
8	Bushing	CW452K	B 159 UNS C51900
9	Bolt	A4-70	A 194 B8M
10	Head piece	1.4404	A 276 Grade 316L
11	Sliding bushing	CW452K	B 159 UNS C51900
12	Gasket	PTFE / Elektrocarbon (25%)
13	Gland bolt	1.4404	A 276 Grade 316L
14	Wiper	PEEK	B 159 UNS C51900
15	Stem	1.4404	A 276 Grade 316L
16	O-ring	FPM (VITON)
17	Bracket	1.4404	A 276 Grade 316L

Nominal size	DN	10	15	20	25	32	40	50
Collar-Ø	G	68.0	68.0	68.0	68.0	84.4	84.4	100
Length	M	5	5	5	5	5	5	5
Actuator-Ø	B	dependent on actuator
Outside pipe-Ø ISO	Ra	13.5	21.3	26.9	33.7	42.4	48.3	60.3
Wall thickness pipe ISO	a	1.6	2.0	2.0	2.6	2.6	2.6	2.6
Pipe-Ø ASTM A312		S10

Dimensions in mm.

Body types

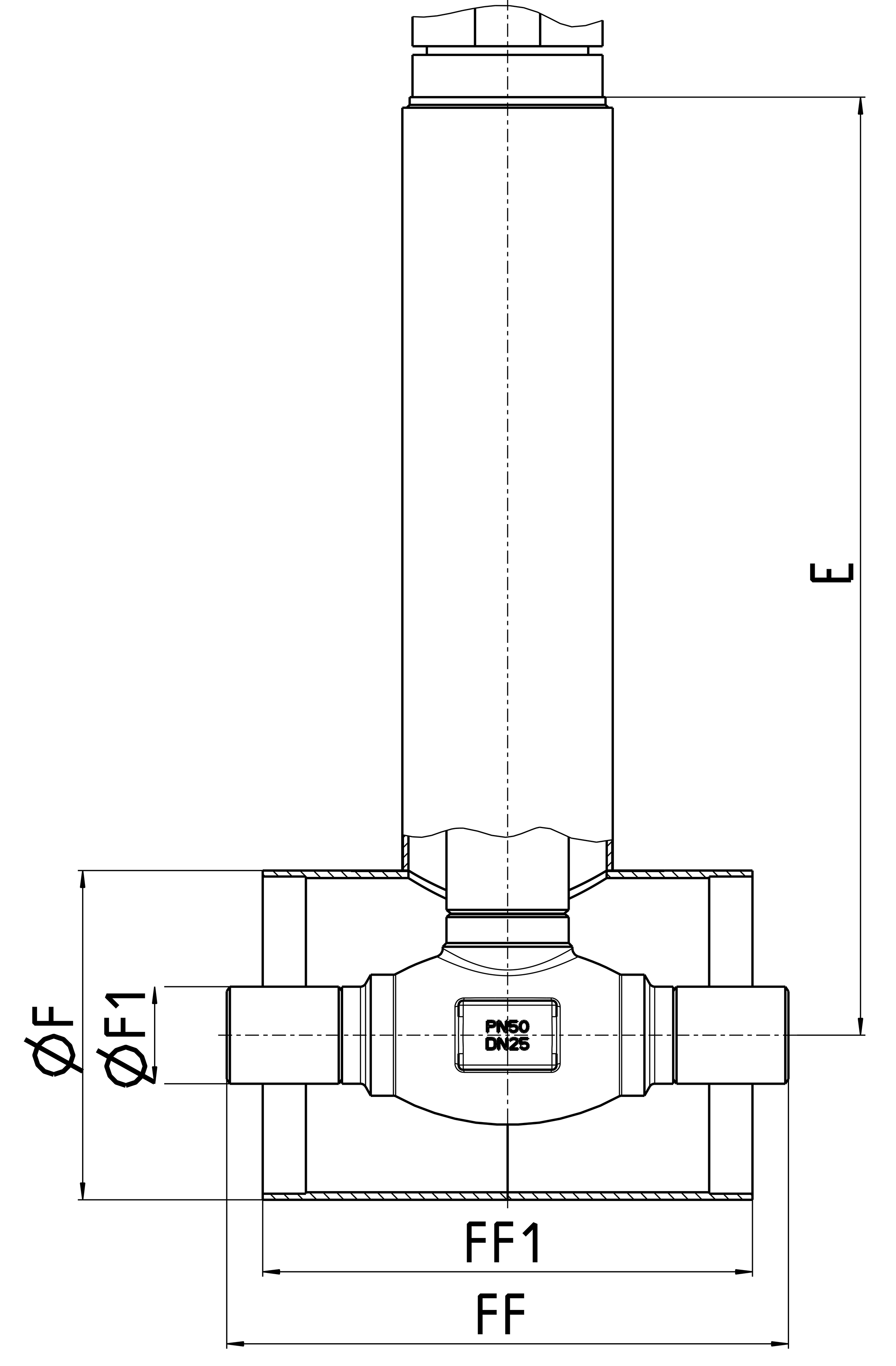

Straight body

Nominal size	DN	10	15	20	25	32	40	50
Face-to-face dim.	FF	85	85	115	115	130	130	155
Height	H	647	647	647	647	dependent on actuator
Length	E	325	325	325	325	445	445	525
Kvs-value	m³/h	2.4	3.8	10.0	13.3	16.0	25.0	46.0
Kvs-value*	m³/h	3.4	4.4	9.5	12.0	25.8	28.3	44.0
Cv-value	gal/min	2.8	4.4	11.6	15.4	18.5	28.9	53.2
Cv-value*	gal/min	4.0	5.1	11.0	14.0	30.0	32.9	51.2
Weight**	ca. kg	4.93	4.94	5.62	5.65	11.42	11.38	14.82

* with bellow, ** without actuator

Flow coefficient for Control Valves - Control characteristic equal percentage Kvs-Value in m³/h,

Cv-Value in gal/min. These figures refer to measurements for the flow direction.

Type 11C01 with actuator and control function - A001 and A002 series

DN	Kvs [m³/h]	Cv [gal/min]	Stroke [mm]
10	1.0	1.2	10
15	3.5	4.1	10
20	4.0	4.7	10
25	6.3	7.3	10
32	10.0	11.6	20
40	19.0	22.1	20
50	30.0	34.9	20

Configurable options

For configurable types, the HEROSE part number consists as follows:

Type	Series	Dimension code	Option codes
11C01.	A001.	0250.	MYJ-CBQ-KCZ-YWF-CBG
1	2	3	4 up to 9

	Selection of the type		Type
1	Type	Product group
1	Type	Globe Valve FullX	11C01

	Selection of the series			Series
2	Series	forged steel body	PN63	A001
2	Series	casted body	PN50	A002

	Selection of the nominal size		Dimension code
3	Nominal sizes	DN10	0100
		DN15	0150
		DN20	0200
		DN25	0250
		DN32	0320
		DN40	0400
		DN50	0500

4	Approvals	PED							MYJ
	Approvals	TPED / TPER							ZCM

5	Body types	Body angle type	CBQ
		Straight body	HJC
		Body Y type	PYU

6	Disc function	lockable function	KCZ
		lockable check function	JDA
		lockable control function	SWX
		lockable throttle function	WVV

7	Operation	manual	YWF
		actuated 'diaphragm actuator'	RQZ
		actuated 'piston actuator'	CEA

		Bellow	Bellow position	Bellow monitoring	Dimension bellow monitoring
8	Bellow options	not selected	not selected	not selected	not selected	LYV
		selected	top	not selected	not selected	MUR
		selected	bottom	not selected	not selected	FYX
		selected	top	selected	DIN EN ISO 8434-1-WDS-S6	GXD
		selected	bottom	selected	DIN EN ISO 8434-1-WDS-S6	XHA

9	Purge port	w/o purge port	CBG
		with NPT 1/8''	EPH
		with VCR 1/4''	ANK
