CRYOGENIC

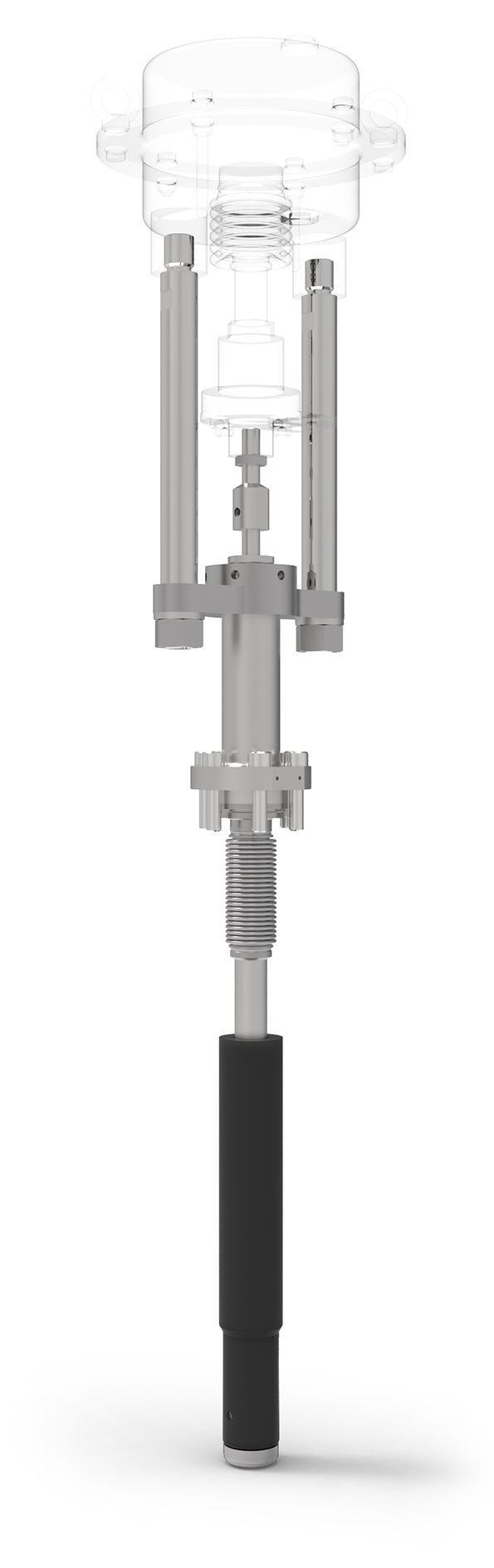

Type 11C01 - Globe Valve FullX with actuator
Top-Entry pneumatic actuated Cryogenic-Globe Valves, forged steel body, up to PN63

A001 series

Stainless steel body and topwork,
actuator - spring to close, air to open
"live loaded" gland packing
"cleaned and degreased for oxygen service"
- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312
Available accessories/options:

- Solenoid valve - Limit switch - Electropneumatic positioner etc.
- Actuator - cleaned and degreased for oxygen service
- Bellow, top position
- Bellow, bottom position
- Bellow monitoring
- Check function
- Control function
- Throttle function
- Purge port

- On request only:
- Further connection types

Applications:
Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -269°C / -452°F (4K) up to +80°C / +176°F (353K)



Type 11C01 - Globe Valve FullX with actuator

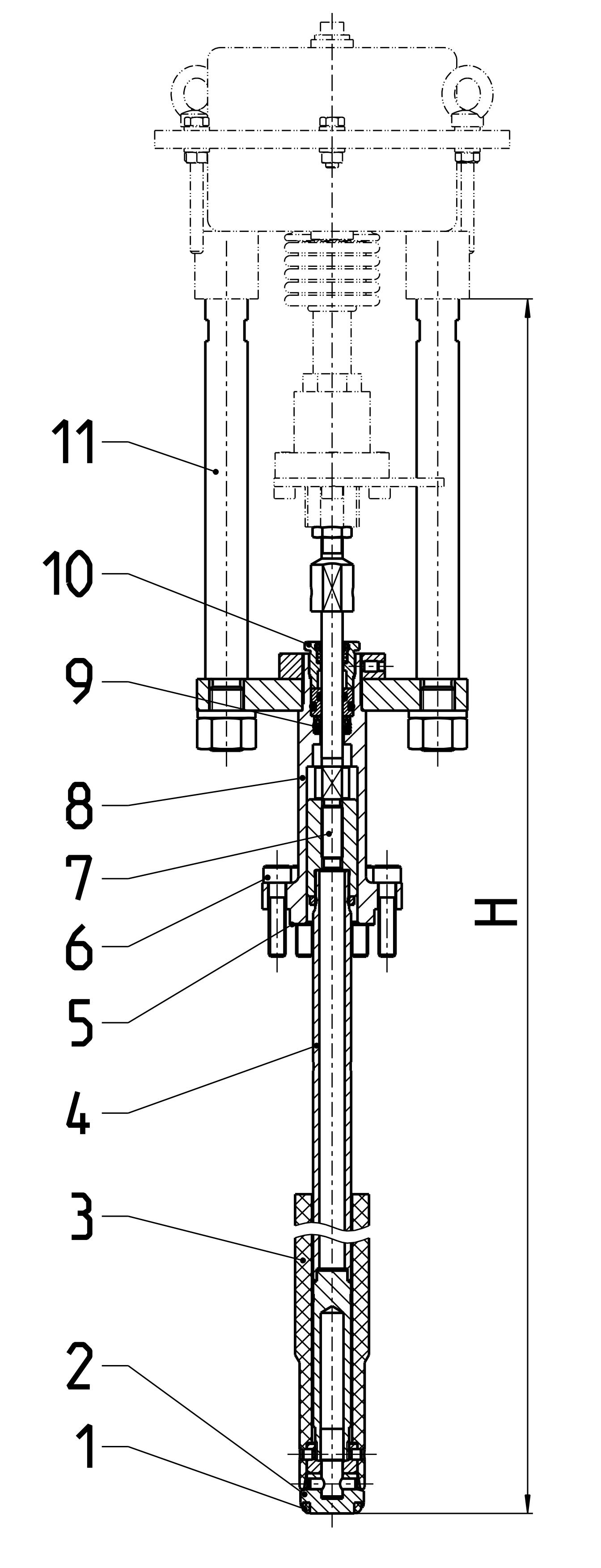

Materials

DIN EN

ASTM
1 Body 1.4571 A 313 Grade 316TI
2 Valve seal PCTFE
3 Disc 1.4571 A 313 Grade 316TI
4 Tube 1.4571 A 313 Grade 316TI
5 Hollow stem 1.4571 A 313 Grade 316TI
6 Flange 1.4404 A 276 Grade 316L
7 Bonnet gasket PTFE / Elektrocarbon (25%)
8 Bushing CW452K B 159 UNS C51900
9 Bolt A4-70 A 194 B8M
10 Head Peace 1.4404 A 276 Grade 316L
11 Sliding bushing CW452K B 159 UNS C51900
12 Gasket PTFE / Elektrocarbon (25%)
13 Gland bolt 1.4404 A 276 Grade 316L
14 Wiper PEEK B 159 UNS C51900
15 Stem 1.4404 A 276 Grade 316L
16 O-ring FPM (VITON)
17 Pillars 1.4404 A 276 Grade 316L



Type 11C01 - Globe Valve FullX with actuator


Nominal size DN10152025324050
Collar-ØG68.068.068.068.084.484.4100
LengthM5555555
Actuator-ØB                                 dependent on actuator
Outside pipe-Ø ISORa17.221.326.933.742.448.360.3
Wall thickness pipe ISOa1.82.02.32.62.62.62.9
Pipe-Ø ASTM A312                                             S10
Dimensions in mm.


Body types




Straight body



Nominal size DN10152025324050
Face-to-face dim.FF150150195195235235280
HeightH647647647647     dependent on actuator
LengthE325325325325445445535
Kvs-valuem³/h3.44.49.812.325.828.344.0
Kvs-value*m³/h3.44.49.512.025.828.344.0
Cv-valuegal/min4.05.111.414.330.032.951.2
Cv-value*gal/min4.05.111.014.030.032.951.2
Weight**ca. kg5.295.316.066.1111.1611.1914.99
* with bellow, ** without actuator


Body angle type



Nominal size DN10152025324050
Facs-to-face dim.FF8080100100120120140
HeightH647647647647     dependent on actuator
LengthE325325325325445445525
LengthL8080100100120120140
Kvs-valuem³/h4.75.719.822.341.143.680.0
Kvs-value*m³/h4.75.716.519.033.335.863.0
Cv-valuegal/min5.56.623.025.947.850.793.0
Cv-value*gal/min5.56.619.222.138.741.673.3
Weight**ca. kg5.265.275.986.0210.7710.8114..19
* with bellow, ** without actuator


Body Y type



Nominal size DN10152025324050
Face-to-face dim.FF185185250250285285340
HeightH521521524524     dependent on actuator
LengthE365365370370505505600
Kvs-valuem³/h4.25.211.914.434.436.969.8
Kvs-value*m³/h4.25.27.710.228.631.135.0
Cv-valuegal/min4.96.013.816.740.042.981.2
Cv-value*gal/min4.96.09.011.933.336.240.7
Weight**ca. kg5.585.606.726.7612.2012.2317.16
* with bellow, ** without actuator

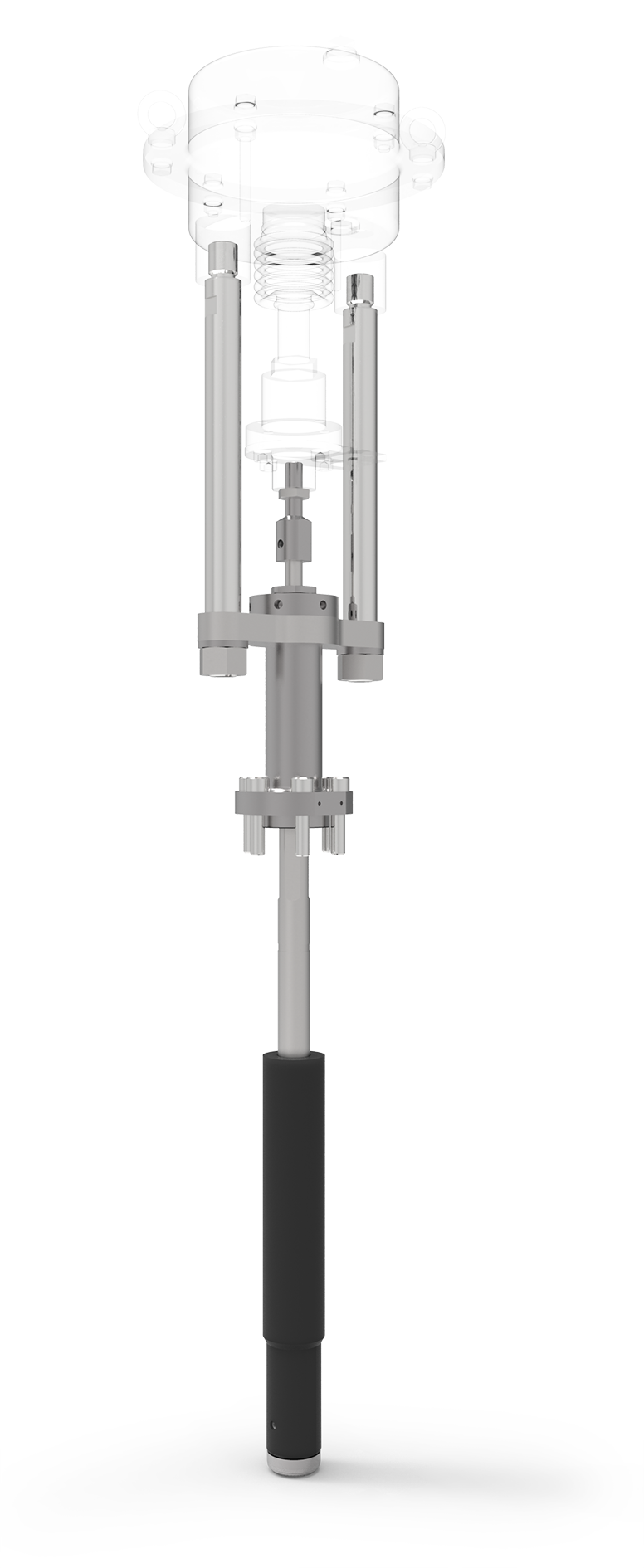

Top-Entry pneumatic actuated Cryogenic-Globe Valves, casted body, up to PN50

A002 series

Stainless steel body and topwork,
actuator - spring to close, air to open
"live loaded" gland packing
"cleaned and degreased for oxygen service"
- the actuator is not cleaned and degreased für oyxgen

Butt weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312
Available accessories/options:

- Solenoid valve - Limit switch - Electropneumatic positioner etc.
- Actuator - cleaned and degreased for oxygen service
- Bellow, top position
- Bellow, bottom position
- Bellow monitoring
- Check function
- Control function
- Throttle function
- Purge port

- On request only:
- Further connection types

Applications:
Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -255°C / -427°F (18K) up to +80°C / +176°F (353K)



Type 11C01 - Globe Valve FullX with actuator

Materials

DIN EN

ASTM
1 Body 1.4409 A 351 CF3M
2 Valve seal PCTFE
3 Disc 1.4571 A 313 Grade 316TI
4 Tube 1.4571 A 313 Grade 316TI
5 Hollow stem 1.4571 A 313 Grade 316TI
6 Flange 1.4404 A 276 Grade 316L
7 Bonnet gasket PTFE / Elektrocarbon (25%)
8 Bushing CW452K B 159 UNS C51900
9 Bolt A4-70 A 194 B8M
10 Head piece 1.4404 A 276 Grade 316L
11 Sliding bushing CW452K B 159 UNS C51900
12 Gasket PTFE / Elektrocarbon (25%)
13 Gland bolt 1.4404 A 276 Grade 316L
14 Wiper PEEK B 159 UNS C51900
15 Stem 1.4404 A 276 Grade 316L
16 O-ring FPM (VITON)
17 Pillars 1.4404 A 276 Grade 316L



Type 11C01 - Globe Valve FullX with actuator


Nominal size DN10152025324050
Collar-ØG68.068.068.068.084.484.4100
LengthM5555555
Actuator-ØB                                 dependent on actuator
Outside pipe-Ø ISORa13.521.326.933.742.448.360.3
Wall thickness pipe ISOa1.62.02.02.62.62.62.9
Pipe-Ø ASTM A312                                             S10
Dimensions in mm.


Body types




Straight body



Nominal size DN10152025324050
Face-to-face dim.FF8585115115130130155
HeightH647647647647     dependent on actuator
LengthE325325325325445445525
Kvs-valuem³/h2.83.810.013.316.025.046.0
Kvs-value*m³/h3.44.49.512.025.828.344.0
Cv-valuegal/min2.84.411.615.418.528.953.2
Cv-value*gal/min4.05.111.014.030.032.951.2
Weight**ca. kg5.275.285.976.0011.0811.0414.48
* with bellow, ** without actuator


Flow coefficient for Control Valves - Control characteristic equal percentage Kvs-Value in m³/h,

Cv-Value in gal/min. These figures refer to measurements for the flow direction.

Type 11C01 with actuator and control function - A001 and A002 series


DNKvs [m³/h]Cv [gal/min]Stroke [mm]
101.01.210
153.54.110
204.04.710
256.37.310
3210.011.620
4019.022.120
5030.034.920


Configurable options

For configurable types, the HEROSE part number consists as follows:


TypeSeriesDimension codeOption codes
11C01.A001.0250.CBQ-KCZ-YWF-CBG
1234 up to 8


  Selection of the type               Type
1 Type Product group Product approval
Globe Valve FullX PED       11C01



  Selection of the series               Series
2 Series forged steel body PN63           A001
casted body PN50           A002



  Selection of the nominal size               Dimension code
3 Nominal sizes DN10             0100
DN15             0150
DN20             0200
DN25             0250
DN32             0320
DN40             0400
DN50             0500



4 Body types Body angle type             CBQ
Straight body             HJC
Body Y type             PYU



5 Disc
function		 lockable function   KCZ
lockable check function JDA
lockable control function SWX
lockable throttle function WVV


6 Operation manual   YWF
actuated 'diaphragm actuator' RQZ
actuated 'piston actuator' CEA



    Bellow Bellow position Bellow monitoring Dimension bellow monitoring
7 Bellow options selected top not selected not selected   MUR
selected bottom not selected not selected   FYX
selected top selected DIN EN ISO 8434-1-WDS-S6   GXD
selected bottom selected DIN EN ISO 8434-1-WDS-S6   XHA



8 Purge port w/o purge port             CBG
with NPT 1/8''             EPH
with VCR 1/4''             ANK
